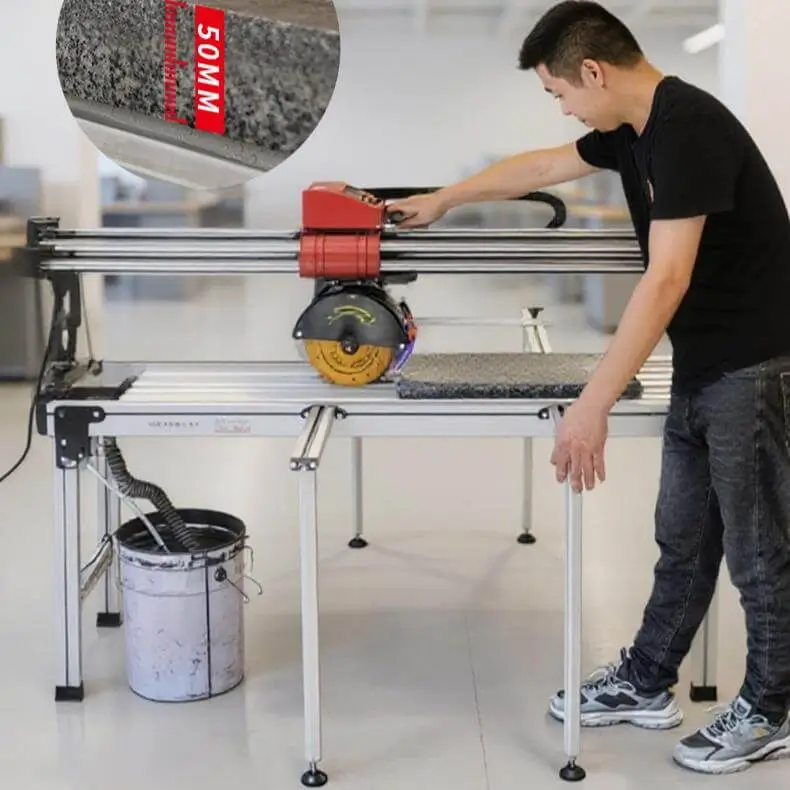

Maximumly can cut 50mm thickness stone or ceramic panels.

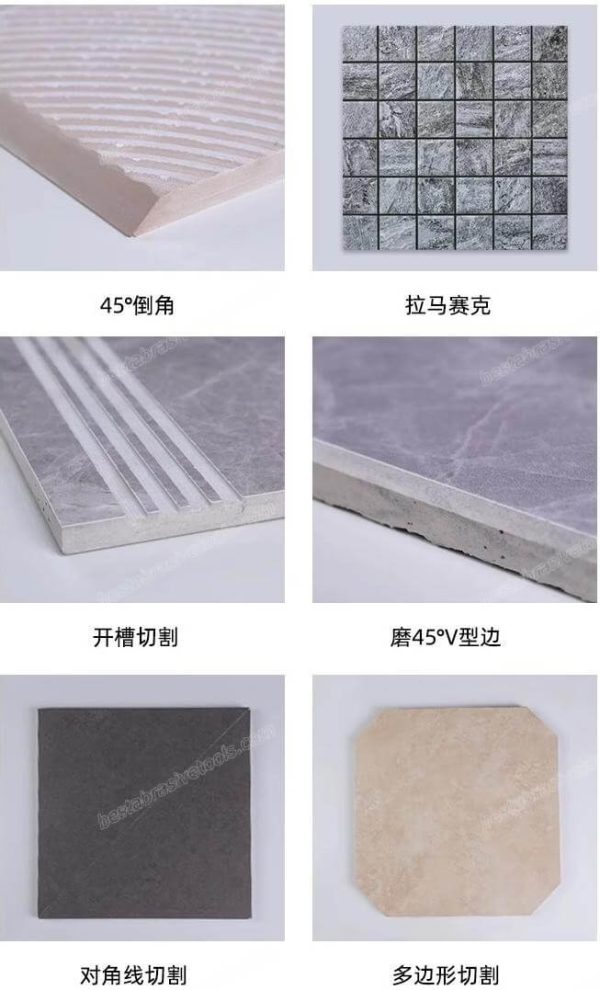

Functions: resize cutting, 45 mitering, bull-nosing, grooving making.
Working video:
Folding legs with integrated wheels for transportation,

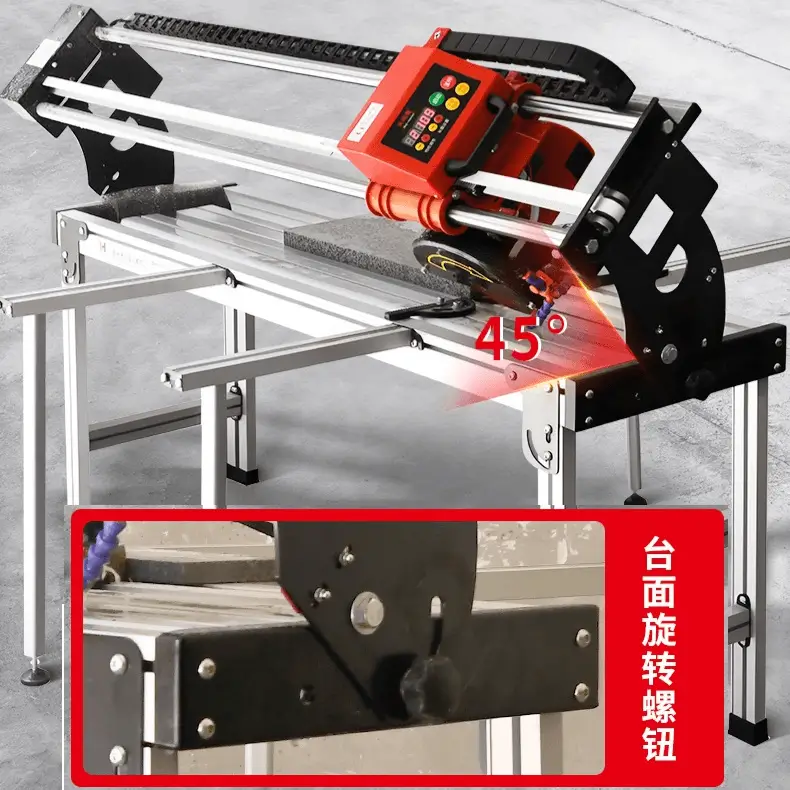

45 degree tilting head,
Powerful 5800W motor, industrial class.

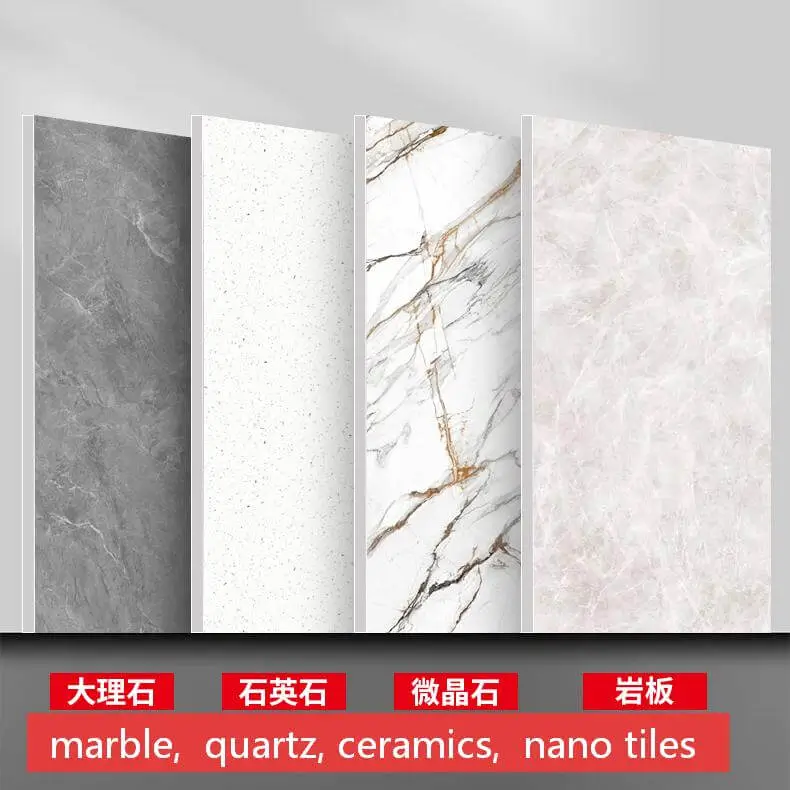

Suitable for cutting marble, quartz, ceramics, nano tiles.

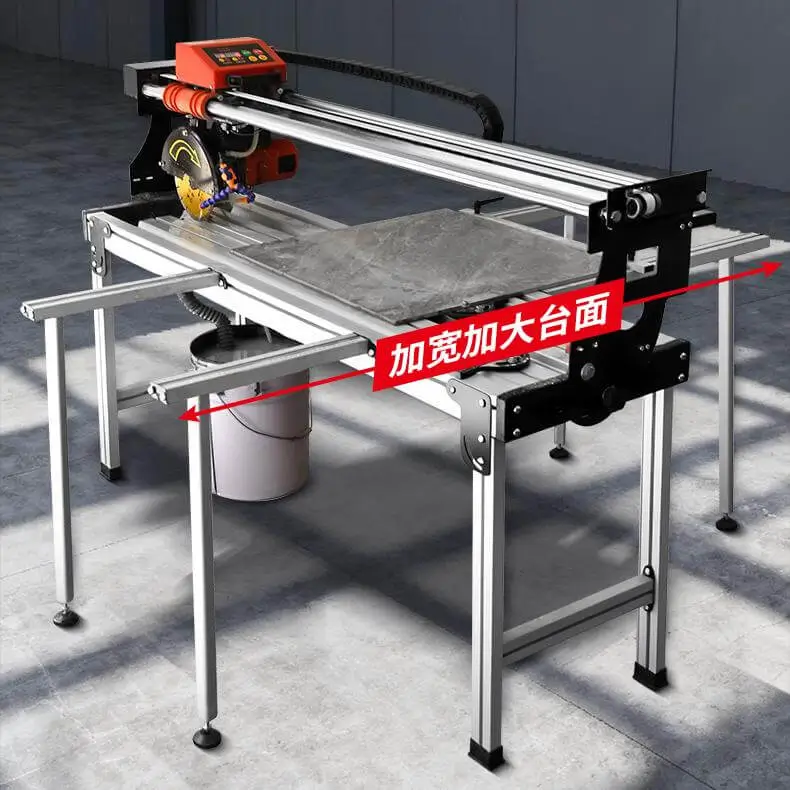

Extension racks for bigger format.

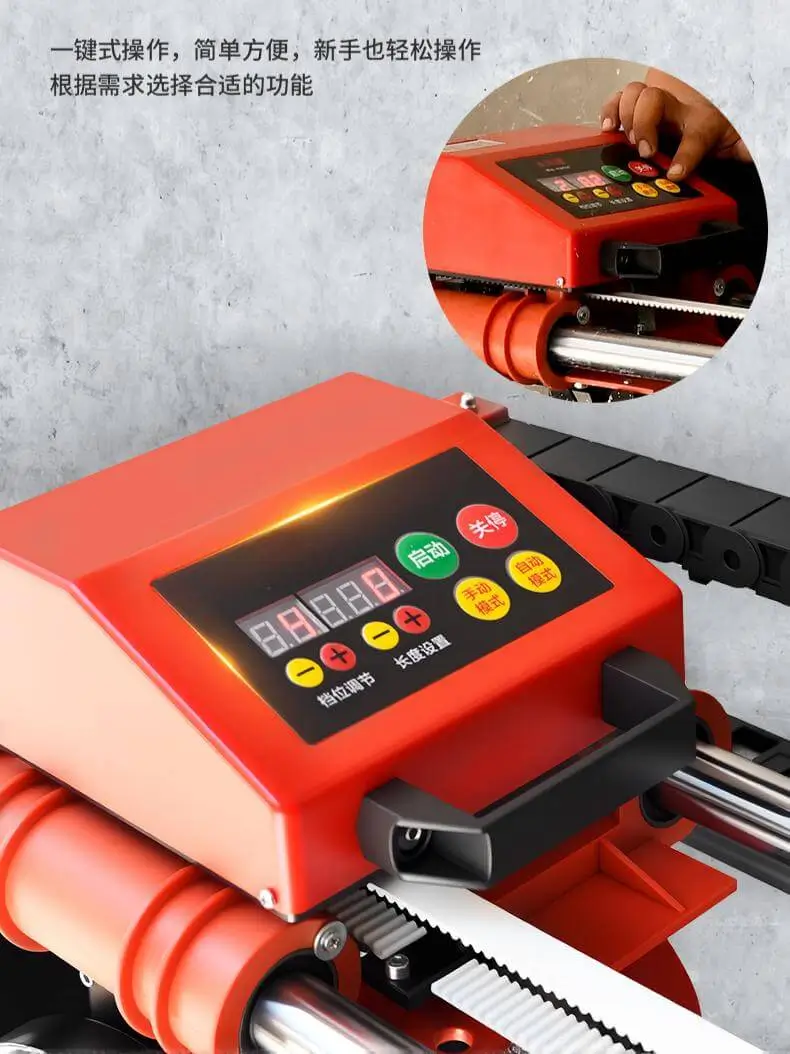

Digital system, easy operation.

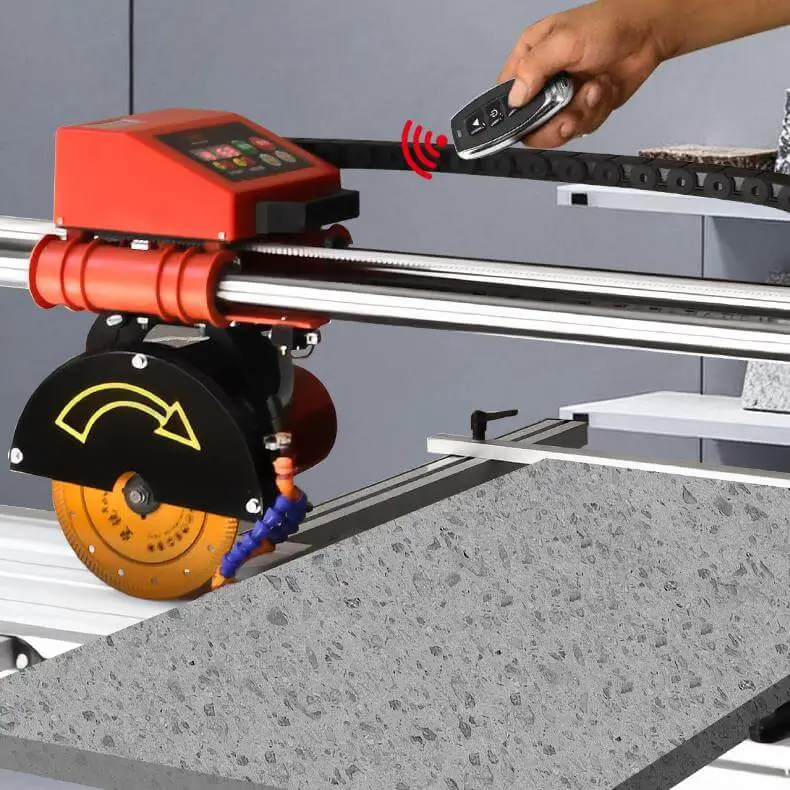

Remote control available.

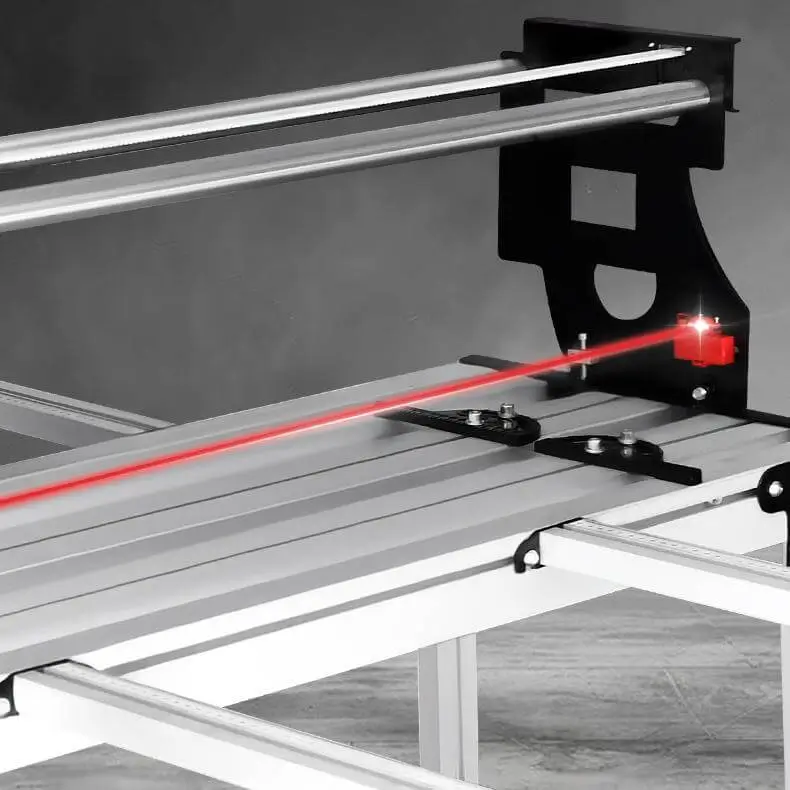

Laser beam helpful for alignment.
Technical parameters:
| Model | 800mm | 1200mm | 1600mm |
|---|---|---|---|
| Voltage | AC220V/230V | AC220V/230V | AC220V/230V |
| Hertz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
| Power | 5.8KW | 5.8KW | 5.8KW |
| RPM | 12000r/min±500r | 12000r/min±500r | 12000r/min±500r |
| Blade core size | φ20mm | φ20mm | φ20mm |
| Max blade thickness | 10mm | 10mm | 10mm |
| Max cutting thickness | 50mm | 50mm | 50mm |
| Tilting angle | 45° | 45° | 45° |
| Max blade diameter | 188mm | 188mm | 188mm |
| Max cutting length8 | 00mm | 1200mm | 1600mm |
| Max workbench size | 800×800mm | 1200×1200mm | 1600×1600mm |
| Packing size | 1690×530×710mm | 2100×530×710mm | 2300×530×710mm |
| Net weight | 60KG±1 | 69KG±1 | 74KG±1 |
| Gross weight | 101KG | 120KG | 140KG |
Application: Tilers, contractors, construction company, ceramic tiles wholesalers, kitchen and bath dealers.
Price: 580~700 USD/set
