Type: Stone Factory Machines -> Stone Surface Processing -> Arm Polishing Machines
Working video:
Machine Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartz, Sandstone, Travertine
Product introduction:

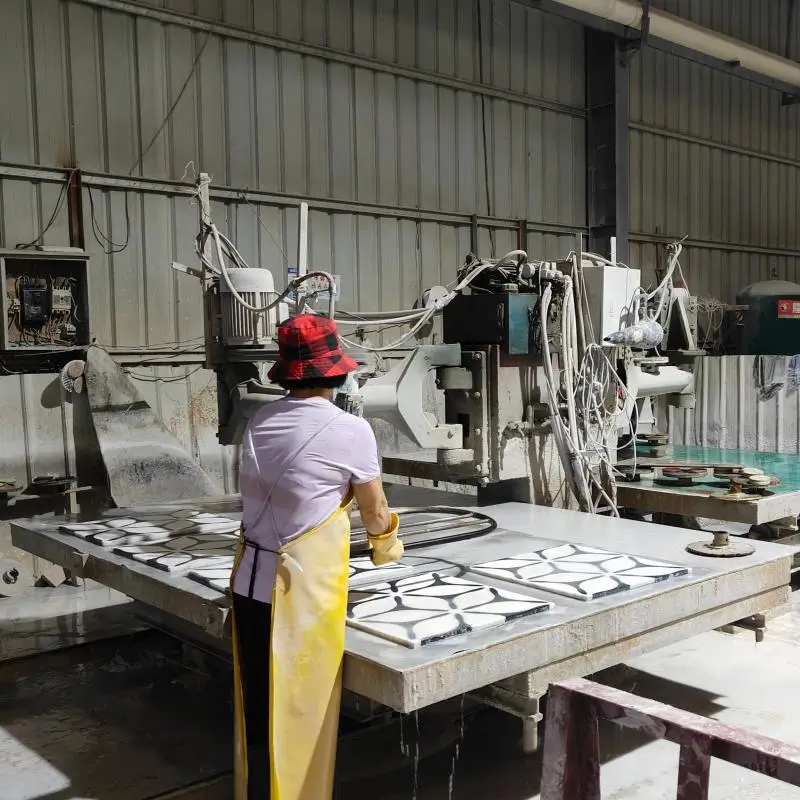

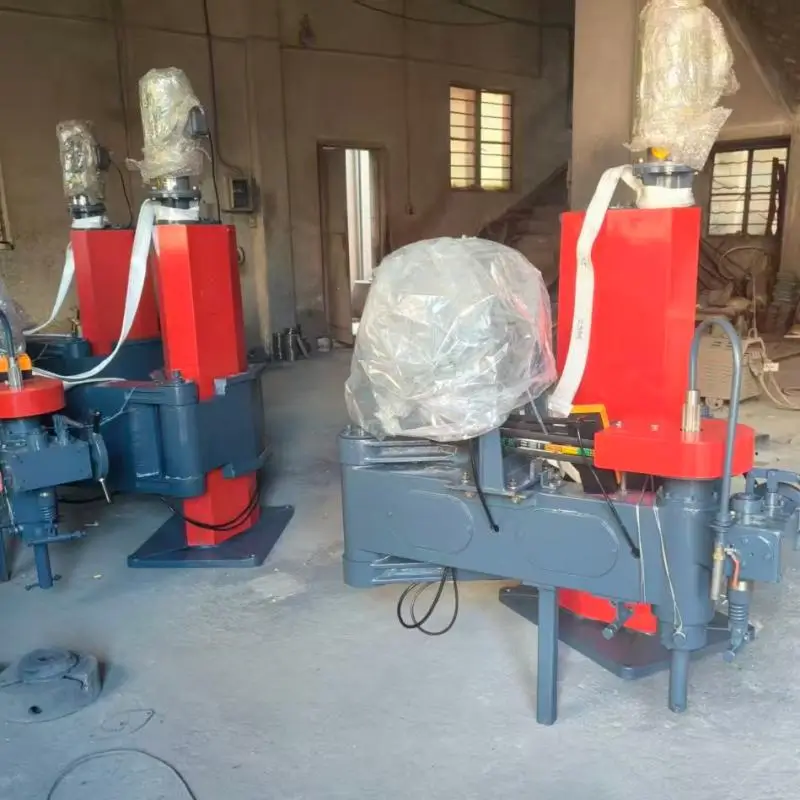

A manual surface polishing machine is applicable to grinding and polishing the surface of all kinds of stones: granite, marble, tombstones, slabs , waterjet mosaic. It is easy operate for different thickness.
Technical Data:
| Model | unit | SF2500 | SF3000 |
|---|---|---|---|
| Maximum radius | mm | 2500 | 3000 |
| Lifting stroke | mm | 470 | 470 |
| Spindle lifting stroke | mm | 80 | 80 |
| Spindle motor power | kw | 5.5 | 5.5 |
| Polish plate diameter | mm | Φ200-300 | Φ200-300 |
| Machine overall | mm | 1.65×1.65×1.8 | 1.75×1.65×1.8 |
| Weight | kg | 750 | 800 |
| Water consumption | m3/h | 2 | 3 |
Consumables

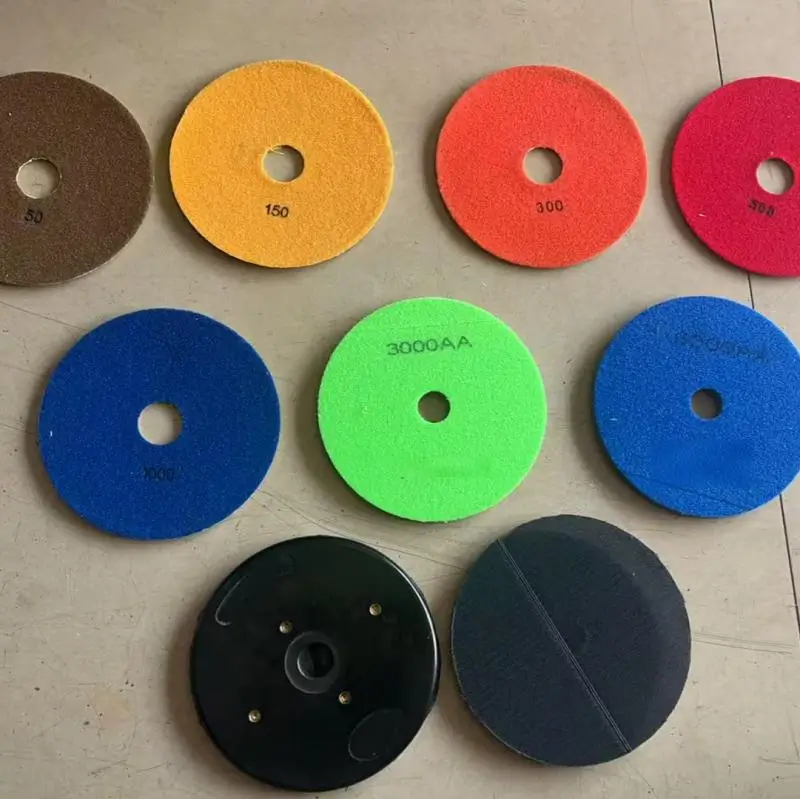

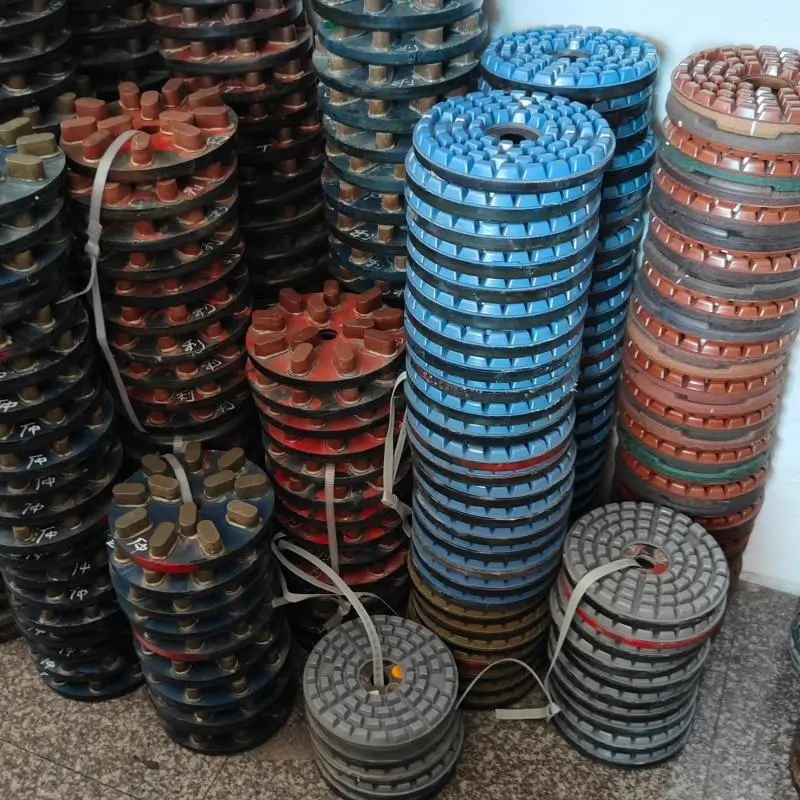

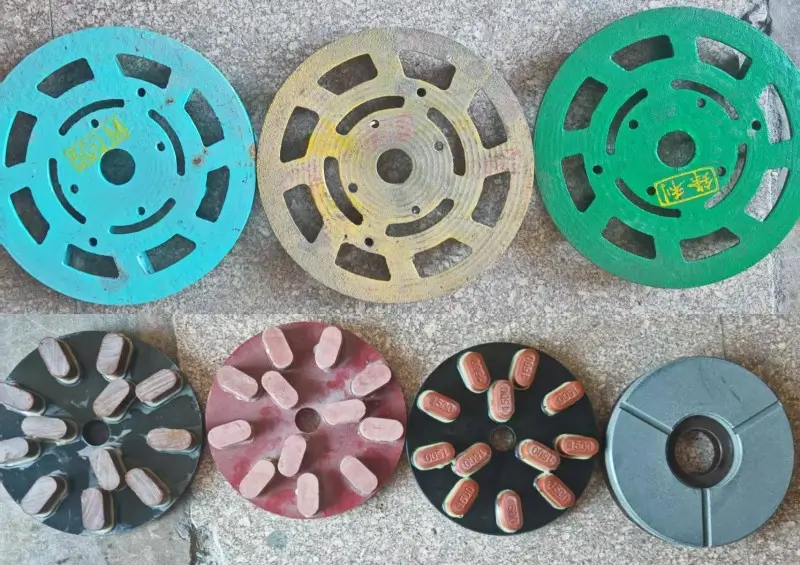

Metal grinder disc: diameter 220mm, particle size 50#, 200#, 400#,
Resin grinder disc: diameter 200mm, particle size 500#, 800#, 1500#, 3000#,
Polishing disc: diameter 200mm, buff
