Functions: resize cutting, 45 mitering, bull-nosing, grooving making.

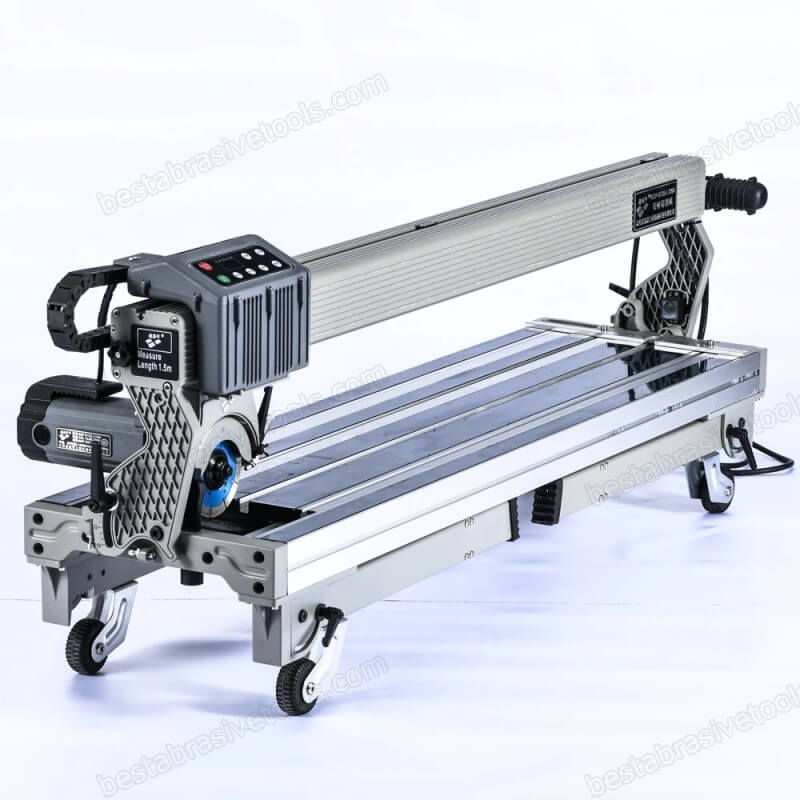

Folding legs with integrated wheels for transportation,

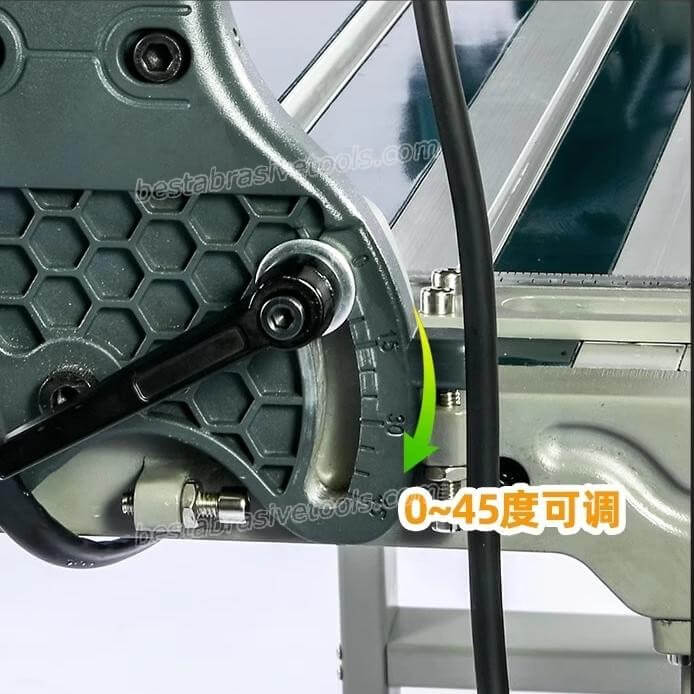

45 degree tilting head,

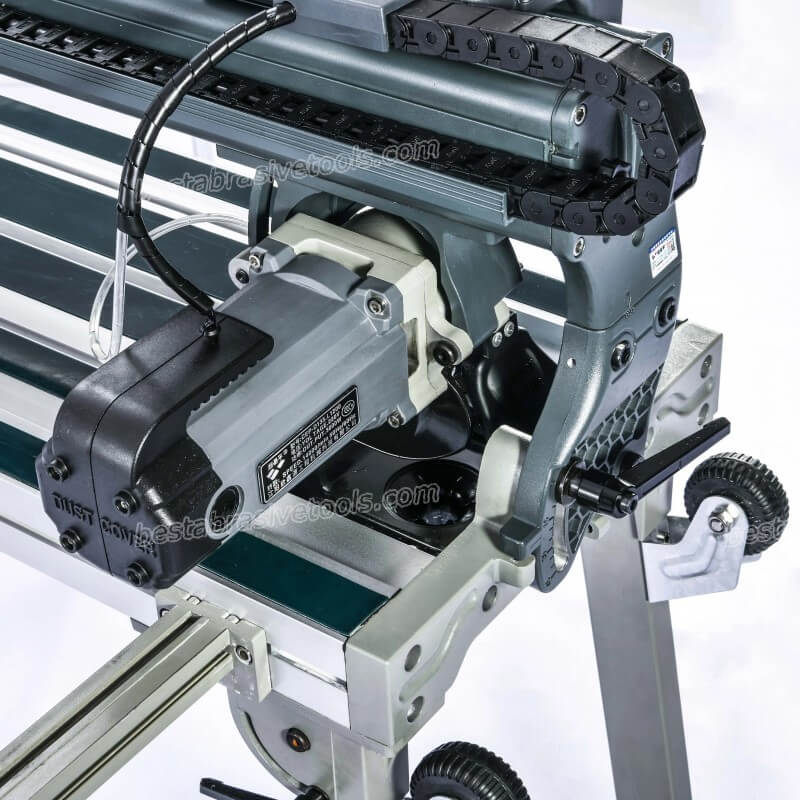

powerful 3KW motor,
Suitable for cutting ceramics, porcelain stoneware, porcelain and other materials.

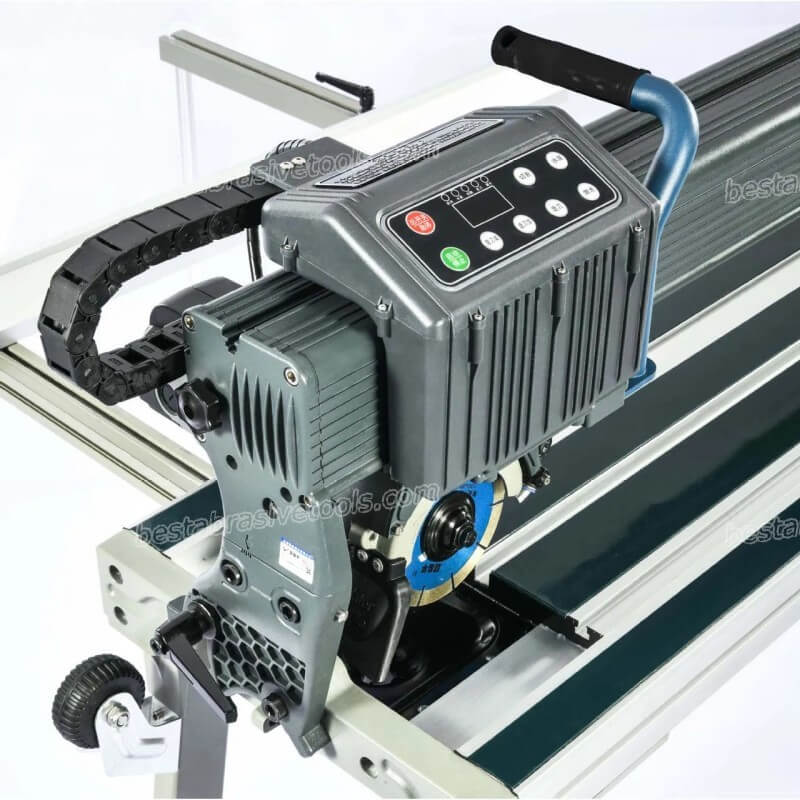

Digital system, easy operation.

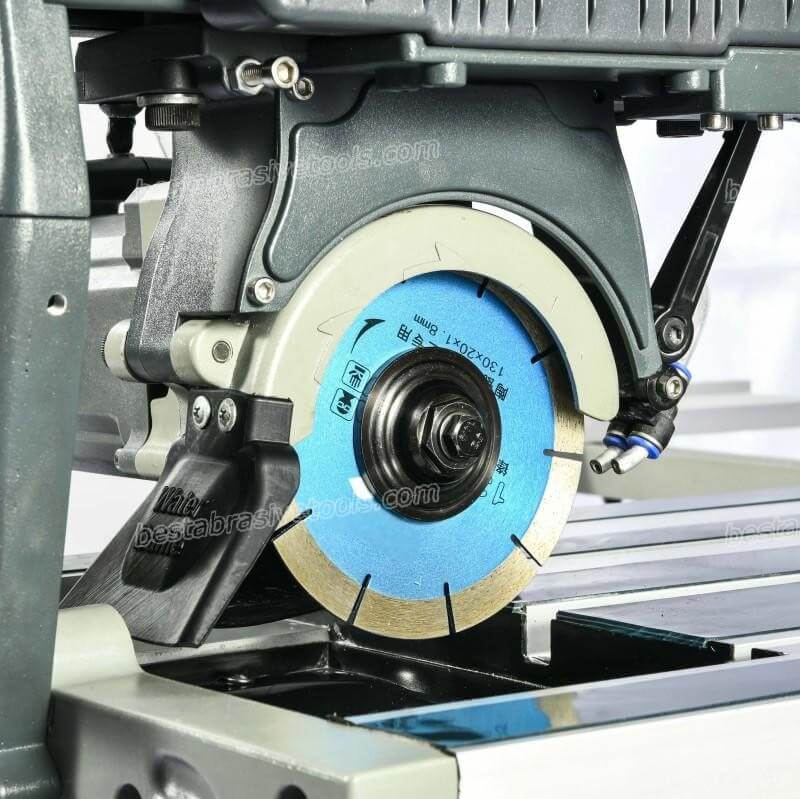

Water collecting tank and recycle pump,

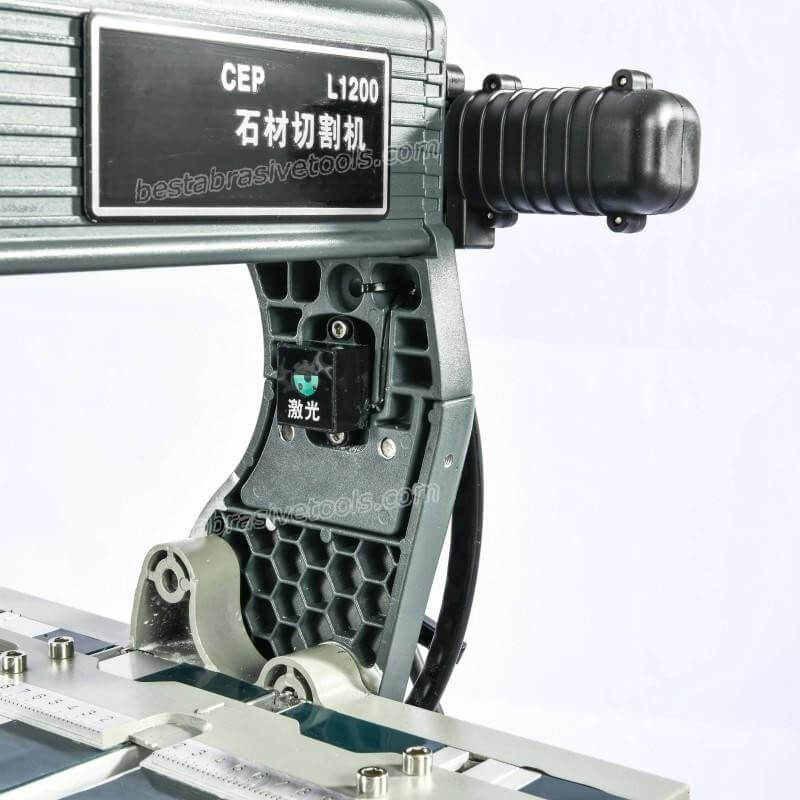

Laser beam helpful for alignment.
Diamond tools: cutting blade or disco, bullnose wheels, notching blades, chamfering abrasive wheels.
Technical parameters:
| Model | CEP1200 | CEP1600 | CEP1800 |
|---|---|---|---|
| Voltage | AC220V/230V | AC220V/230V | AC220V/230V |
| Hertz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
| Power | 3KW | 3KW | 3KW |
| RPM | 12000r/min±500r | 12000r/min±500r | 12000r/min±500r |
| Blade core size | φ20mm | φ20mm | φ20mm |
| Max blade thickness | 10mm | 10mm | 10mm |
| Max cutting thickness | 30mm | 30mm | 30mm |
| Tilting angle | 45° | 45° | 45° |
| Max blade diameter | 135mm | 135mm | 135mm |
| Max cutting length | 1200mm | 1600mm | 1800mm |
| Max workbench size | 1200×1600mm | 1600×1600mm | 1800×1600mm |
| Bare workbench size | 1200×400mm | 1600×400mm | 1800×400mm |
| Packing size | 1690×530×710mm | 2100×530×710mm | 2300×530×710mm |
| Net weight | 60KG±1 | 69KG±1 | 74KG±1 |
| Gross weight | 101KG | 120KG | 140KG |
Application: Tilers, contractors, construction company, ceramic tiles wholesalers, kitchen and bath dealers.
Price: 750~1500 USD/set
